Fits the 6.6L Duramax in 2001-2007 Chevrolet and GMC HD trucks (LB7, LLY and LBZ) and the 1996-2004 GM gas trucks that share the same case and mount. This is a direct bolt-in upgrade over the factory unit — same mount, same pulley position, no bracket modification.
Diesel engines spend most of their working life at low RPM, and that is exactly where a stock alternator runs out of headroom. This unit holds 200+ amps at engine idle and delivers a full 170+ amps at cruising speed, hot rated — enough for a lift pump, auxiliary lighting, a winch, a plow, a welder or a competition-grade stereo without watching your voltage sag at every stoplight.
Engine codes covered: LB7, LLY, LBZ
Vehicles: Silverado Sierra 2500HD 3500HD, Suburban, Tahoe, Escalade
The S series of 6 phase alternators offers incredible output in a compact and durable package. 12 diodes, (instead of the normal 6 diodes) and twin rectifier plates with outstanding airflow ensure long service life, even in severe conditions. A side output stud and seamless rear cover with a side output plug allow for better clearance from the back of the alternator to the front of the engine and a smooth appearance.

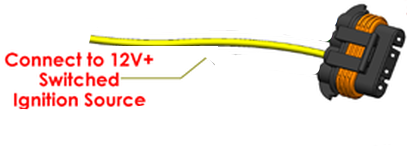

A single wire on the provided pigtail gets connected to any ignition switched 12V+ source to turn the alternator on and off with the ignition switch. Simply run a properly sized positive and ground cable from the alternator to the terminals of the battery and the alternator will work perfectly, regardless of what kind of wiring harness you have.
| Make | Model | Engine Size | Year |
| Buick | Rainier | 5.3L | 2004 - 2006 |
| Cadillac | Escalade | 5.7 / 6.0 / 6.2 | 1999 - 2004 |
| Chevrolet | Astro Van | 4.3L | 1996 - 2005 |
| Chevrolet | Avalanche | All Engines | 2002 - 2004 |
| Chevrolet | Camaro | 5.0 / 5.7 | 1998 - 2002 |
| Chevrolet | Express Van w/4 pin plug | | 1996 - 2016 |
| Chevrolet | Full Size Truck | All Gas Engines | 1996 - 2004 |
| Chevrolet | Full Size Truck | 6.6L Duramax | 2001 - 2007 |
| Chevrolet | S-10 / Blazer | 4.3L | 1994 - 2004 |
| Chevrolet | SSR | 5.3 / 6.0 | 2003 - 2006 |
| Chevrolet | Suburban | w/4 pin plug | 1996 - 2004 |
| Chevrolet | Tahoe/Full Size Blazer | All Gas Engines | 1996 - 2004 |
| Chevrolet | Trailblazer | 5.3L | 2003 - 2006 |
| GMC | Envoy | 5.3L | 2003 - 2006 |
| GMC | Full Size Truck / Sierra | 4.3L | 1996 - 2004 |
| GMC | Full Size Truck / Sierra | 4.8L | 1999 - 2004 |
| GMC | Full Size Truck / Sierra | 5.0L | 1996 - 1999 |
| GMC | Full Size Truck / Sierra | 5.3L | 1999 - 2004 |
| GMC | Full Size Truck / Sierra | 5.7L | 1996 - 2000 |
| GMC | Full Size Truck / Sierra | 6.0L | 1999 - 2005 |
| GMC | Full Size Truck / Sierra | 6.6 Diesel | 2001 - 2006 |
| GMC | Full Size Truck / Sierra | 7.4L | 1996 - 2000 |
| GMC | Full Size Truck / Sierra | 8.1L | 2001 - 2005 |
| GMC | Safari | 4.3L | 1994 - 2004 |
| GMC | Savana Van | w/ 4 pin oval plug | 1996 - 2016 |
| GMC | Suburban | w/ Oval plug | 1996 - 2004 |
| GMC | Yukon | w/ Oval plug | 1996 - 2004 |
| Hummer | H2 | 6.0L | 2003 - 2007 |
| Oldsmobile | Bravada | 4.3L | 1994 - 2001 |
| Pontiac | Firebird | 5.0 / 5.7 | 1998 - 2002 |
