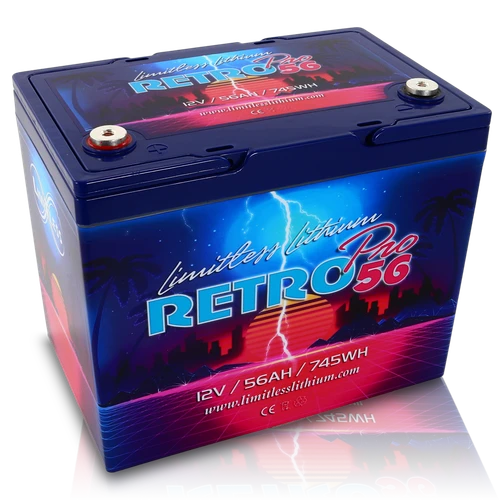

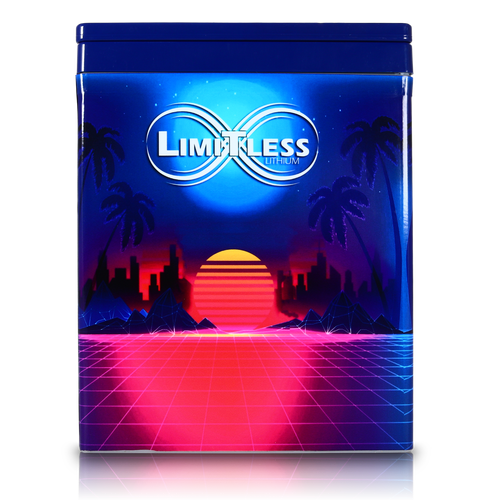

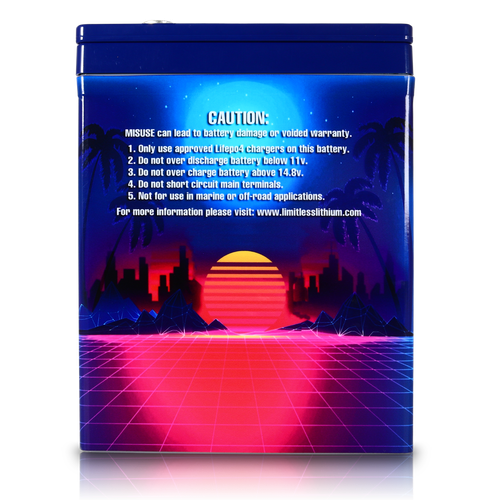

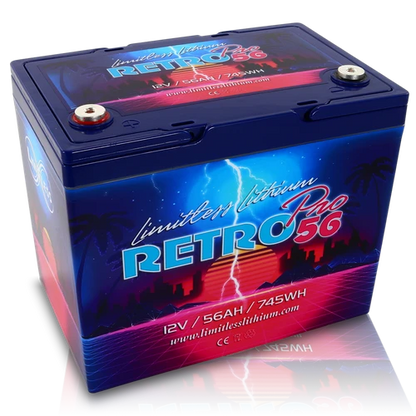

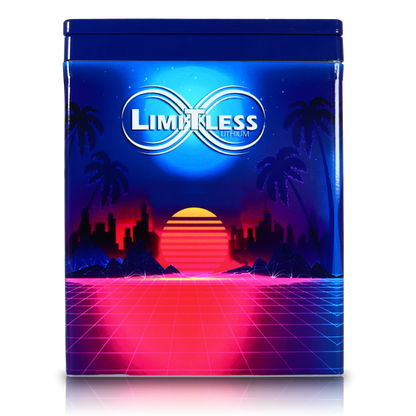

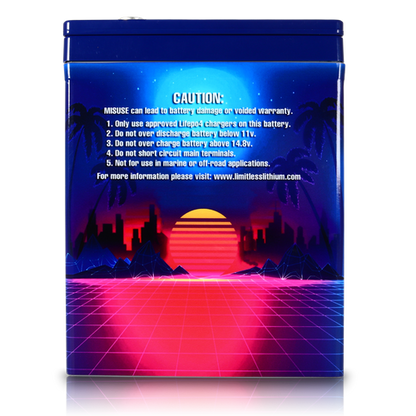

Retro Pro 56
|
Specification Sheet |
|
Model |
Retro Pro 56 |
|
Voltage |
12V |
|
Resting Voltage Range |
13.1V-13.4V |
|
Capacity (Amp Hours) |
56AH (Not Pb Eq) 200-240 Pb Eq |
|
Chemistry |
LifePo4 |
|
Operating Temperature Range |
-30-60℃/-22℉-140℉ |
|
Weight |
21 lbs |
|
Dimensions |
Height 8.75” Depth 6.5” Wide 10.125” |
|
BCI Group Case |
Group 24 |
|
Terminal Size |
M8x125 |
|
Terminal Orientation |
Positive Left |
|
Life Cycles |
2,000 @ 80% DOD |
|
Battey Management System (BMS) |
No |
|
Balance Board |
Yes (Internal) |
|
Max Charge Voltage |
14.8V |
|
Max Charge voltage BMS Cutoff |
NA |
|
Minimum Discharge Voltage BMS cutoff |
NA |
|
Max Input Charge Current |
400A *Charging higher than this can reduce cycle life |
|
Continuous Discharge Current |
750A |
|
Max Discharge Current (Burst amperage) |
1200-1300A (Temperature dependent) |
|
Continuous Wattage Range (Alt. size dependent) |
9,000-13,000W (100A-400A Alt) |
|
Burst Wattage (Alt size dependent) |
16,000W |
Warranty:
Each battery comes with a 1-year warranty, Once Registered (within 30 days of purchase) you will be locked in for a 2 year extension. so you have peace of mind knowing you’re covered, With a 3-Year manufacture defect warranty.
The expected life span of our Nano HD series battery is 10+ years with proper care and maintenance.
